Drain Cell

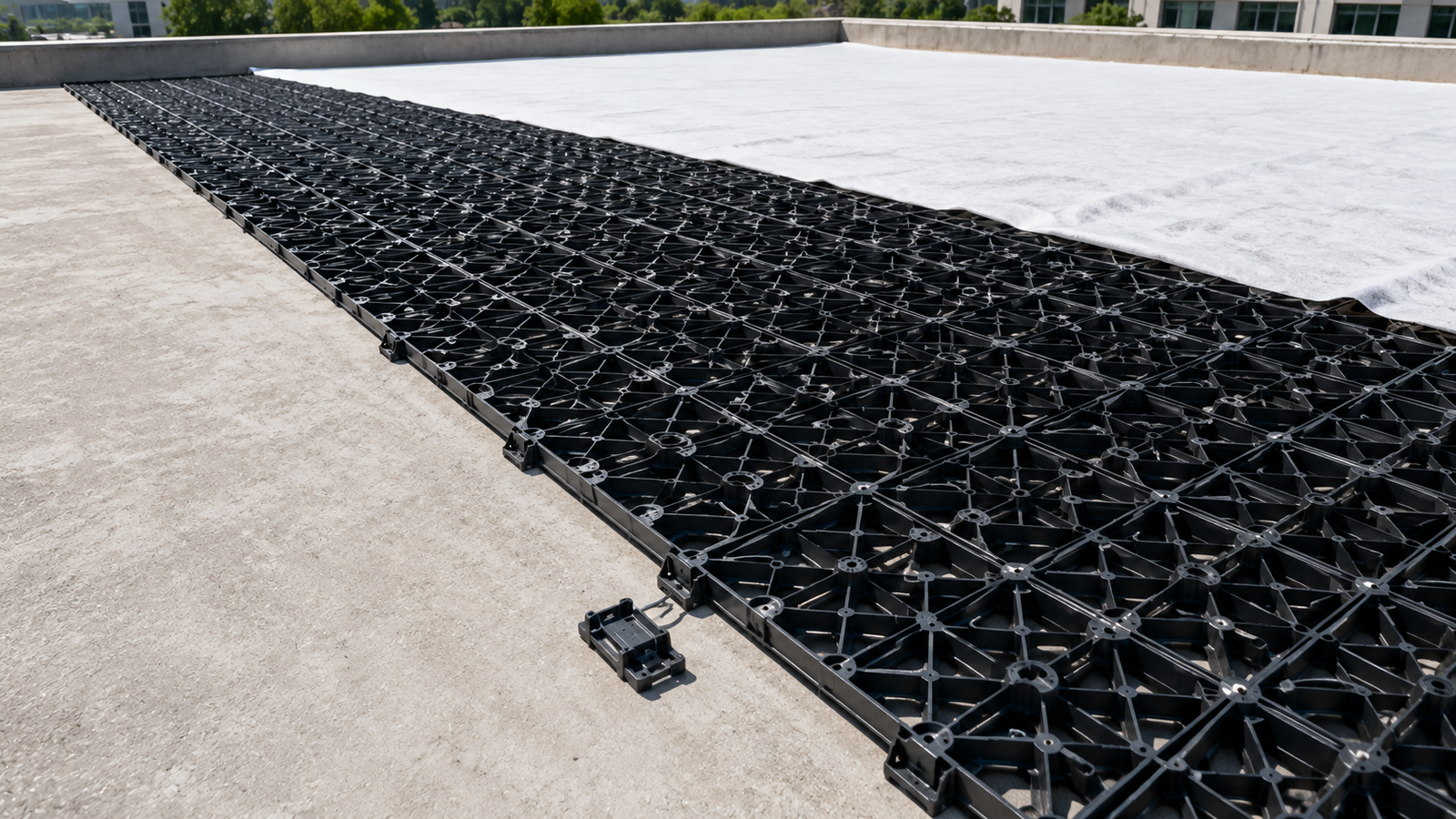

High-strength modular plastic sub-surface drainage cell engineered for rapid hydraulic discharge across podium decks, green roofs, and civil retaining walls.

Auroguard Private Limited manufactures premium modular Drain Cells, high-performance sub-surface stormwater management units engineered from recycled or virgin high-strength polymers. These lightweight, interlocking plastic grids feature an optimized open-surface area configuration that enables incredibly high structural water discharge rates while acting as a stable, high-load-bearing foundation platform. Designed to withstand massive dead and live loads during landscaping and civil backfilling operations, our modular drainage plates create a permanent, uniform cavity gap that prevents structural water logging, hydro-static pressure buildup, and subsequent masonry dampness. It is universally specified for demanding modern infrastructure projects—including intensive green rooftop gardens, sports turf sub-bases, structural podium decks, planter boxes, and underground civil retaining wall systems requiring rapid, efficient subgrade fluid evacuation.

SKU AG-8125 Brand Auroguard Audience NHAI · MoRTH · PWD · EPC

Request Quote WhatsApp

Technical Specifications

Engineered to specification.

Specification	Value
Material Base Composition	High-Strength Polypropylene (PP) \/ High-Density Polyethylene (HDPE) Polymers
Module Panel Dimensions	300 mm x 300 mm \\| 500 mm x 500 mm Interlocking Structural Grids
Core Cell Depth Profile	20 mm \\| 30 mm \\| 50 mm Heavy Engineering Profiling Thicknesses
Compressive Strength Scale	1000 kN/m² up to 1500 kN/m² Extreme Mechanical Loading Capacity
Internal Void Surface Ratio	≥ 90% up to 95% High-Capacity Fluid Void Spaces
Internal Flow Core Capacity	Extremely High Horizontal and Vertical Water Flow Efficiency
Assembly Joining System	Integrated Male-Female Snap-Lock Interlocking Interfacial Anchors
Chemical Biological Matrix	Absolute Immunity to Mould, Root Penetration, Soil Acids, and Strong Alkalies
Primary Infrastructure Utility	Urban Green Rooftops, Commercial Podium Decks, Highway Planter Boxes, Retaining Walls

Applications

Where it's used

Sub-grade separation and reinforcement
Slope, embankment and channel erosion control
Retaining structures and reinforced soil walls
Landfill and pond lining
Drainage and filtration layers

Standards & Compliance

Built to code

IRC:113 / IRC:SP:59MoRTH Section 700IS:16391 / IS:17371ASTM D4595 / D6637BIS geosynthetic norms

FAQ

Drain Cell — buyer questions.

Is Auroguard a direct manufacturer of Drain Cell?

Yes. Auroguard Private Limited manufactures Drain Cell and supplies it factory-direct to NHAI, MoRTH, PWD, EPC contractors and industrial buyers across India — no middlemen.

Does Drain Cell meet NHAI / MoRTH / IS standards?

Drain Cell is manufactured to the applicable IRC:113 / IRC:SP:59, MoRTH Section 700, IS:16391 / IS:17371 specifications. Test certificates and tender documentation are provided on request.

Can Auroguard supply Drain Cell in bulk for projects?

Yes. Auroguard regularly handles bulk and tender-quantity orders of Drain Cell for national highways, state highways, smart-city programs and EPC infrastructure works, with pan-India dispatch.

How do I get a quotation for Drain Cell?

Share your BOQ, quantity and destination by phone (+91 90510 39176), WhatsApp or the enquiry form. You deal directly with the engineering desk that quotes, manufactures and ships.
