Conical Pole

Continuously tapered, aerodynamic hot-dip galvanized steel poles engineered for architectural street lighting, smart city surveillance, and high-wind structural resilience.

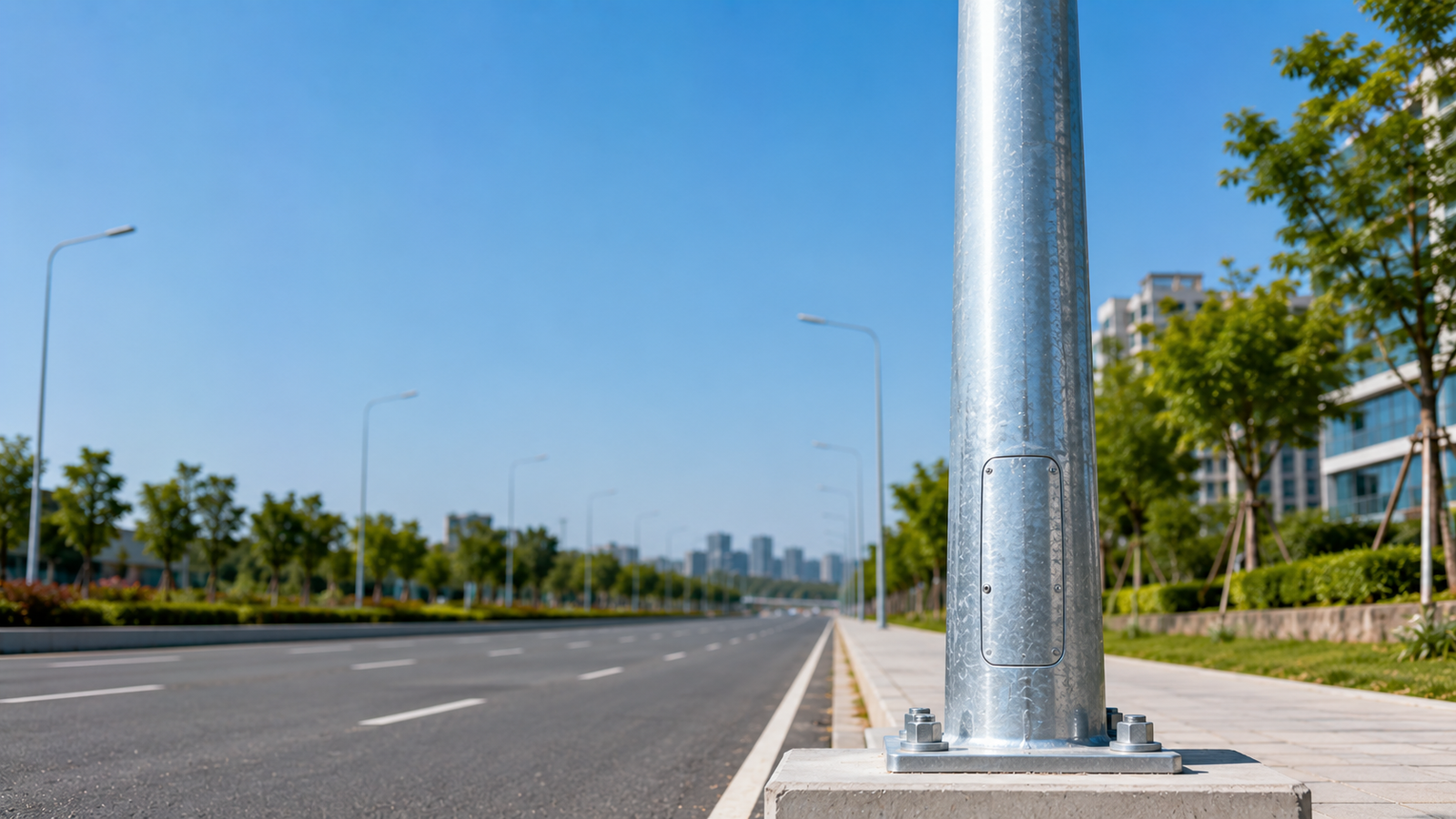

Auroguard Private Limited manufactures premium-grade Conical Poles, structurally optimized to deliver advanced structural engineering and modern aesthetics to urban infrastructure layouts. Fabricated from high-yield structural steel sheets, each pole is continuously tapered from a wide, stable base plate up to a slender top diameter using automated longitudinal welding lines. This aerodynamic, unjointed conical geometry provides exceptional resistance to dynamic wind forces and minimizes structural fatigue caused by vibrating cantilever arm loads. To counter the harsh atmospheric corrosion present across municipal highways, commercial developments, and industrial ports, every pole undergoes a strict hot-dip galvanization process. Featuring built-in weatherproof flush service doors for safe, easy terminal block wiring and earthing connections, our poles are universally specified across smart city projects, high-speed national highway lighting, public park plazas, and traffic signal monitoring junctions demanding long-term structural integrity.

SKU AG-6717 Brand Auroguard Audience NHAI · MoRTH · PWD · EPC

Request Quote WhatsApp

Technical Specifications

Engineered to specification.

Specification	Value
Material Base Grade	High-Yield Structural Steel conforming to IS:2062 \/ ASTM A36 Standard Specs
Pole Geometric Design	Continuous Circular Conical Taper with No Circumferential Joints
Pole Installation Heights	3.00 Meters up to 14.00 Meters Single-Section Engineering Spans
Base Sheet Thickness	3.00 mm \\| 4.00 mm \\| 5.00 mm Heavy Engineering Gauges
Zinc Galvanization Mass	Certified Minimum 460 g/m² up to 610 g/m² Hot-Dip Coating (IS:2629 / IS:4759)
Welding Quality Matrix	Automatic Continuous Longitudinal Submerged Arc Welding (SAW) Lines
Service Door Layout	Weatherproof Flush-Fit Integrated Door with Anti-Theft Internal Locking System
Mounting Bracket Options	Single, Double, Triple, or Quad-Arm Cantilever Arrangements
Primary Infrastructure Utility	Smart City Street Lighting, Traffic Monitoring CCTV Surveillance, Highway Illumination

Applications

Where it's used

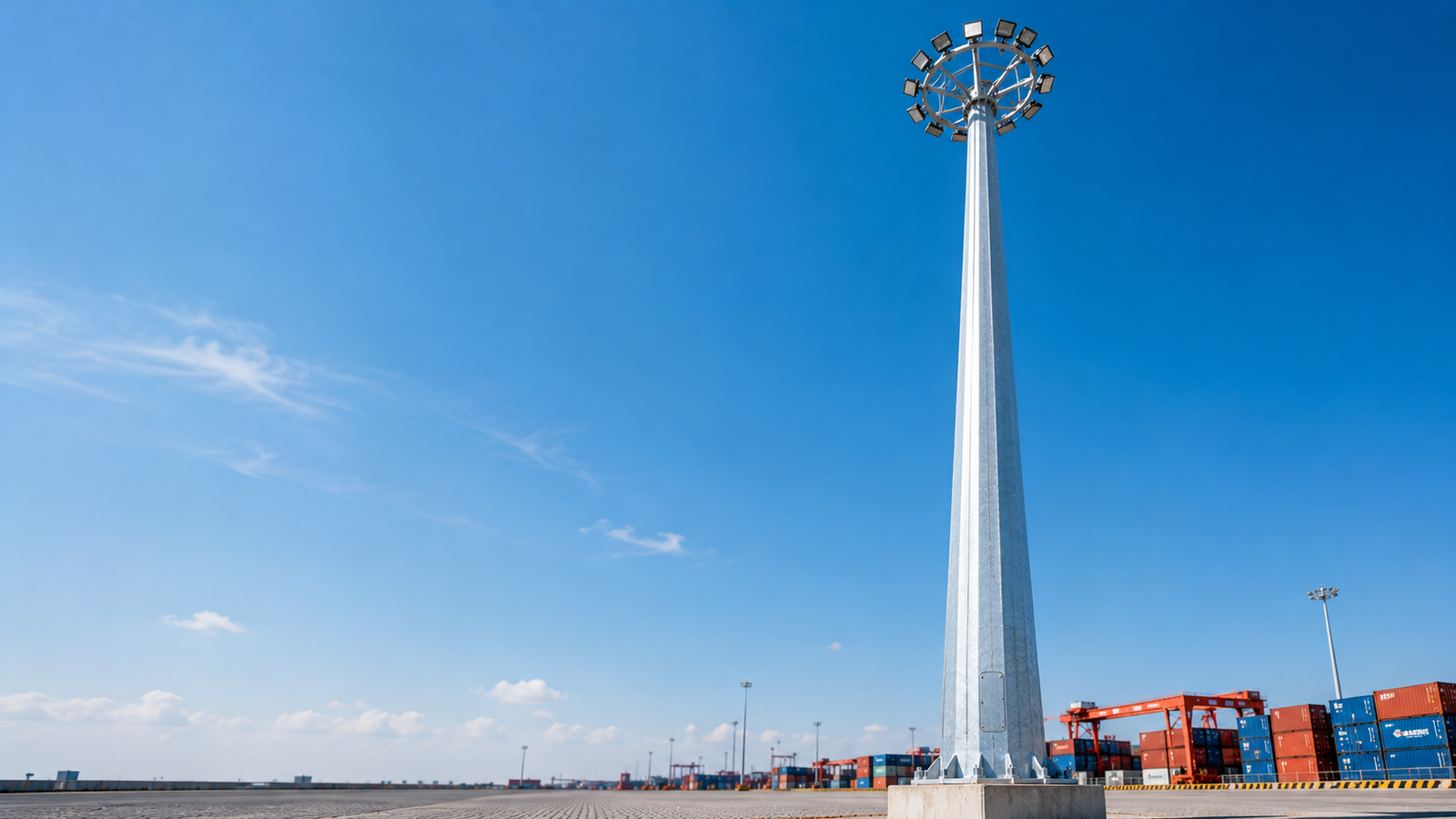

Highway and expressway high-mast lighting
Urban street and junction lighting
Industrial yard and port lighting
Smart-city avenue lighting
Flag and signage masts

Standards & Compliance

Built to code

IS:2713 (tubular poles)IS:875 (wind loading)BS EN 40IS:4759 (galvanising)MoRTH specifications

FAQ

Conical Pole — buyer questions.

Is Auroguard a direct manufacturer of Conical Pole?

Yes. Auroguard Private Limited manufactures Conical Pole and supplies it factory-direct to NHAI, MoRTH, PWD, EPC contractors and industrial buyers across India — no middlemen.

Does Conical Pole meet NHAI / MoRTH / IS standards?

Conical Pole is manufactured to the applicable IS:2713 (tubular poles), IS:875 (wind loading), BS EN 40 specifications. Test certificates and tender documentation are provided on request.

Can Auroguard supply Conical Pole in bulk for projects?

Yes. Auroguard regularly handles bulk and tender-quantity orders of Conical Pole for national highways, state highways, smart-city programs and EPC infrastructure works, with pan-India dispatch.

How do I get a quotation for Conical Pole?

Share your BOQ, quantity and destination by phone (+91 90510 39176), WhatsApp or the enquiry form. You deal directly with the engineering desk that quotes, manufactures and ships.
